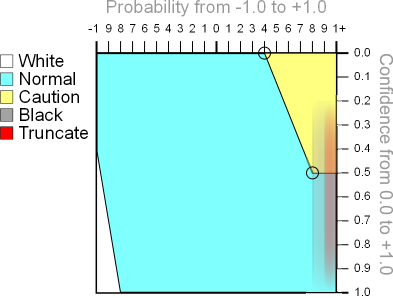

The caution region's envelope is defined by edge elements. The caution envelope extends from a boundary marked by each edge to the right (+1) boundary of the propability figure. The default caution range is defined by two edges:

<edge probability='0.4' confidence='0.0'/>
<edge probability='0.8' confidence='0.5'/>

The probability attribute for each edge defines its position on the probability figure ( X ) axis.

The confidence attribute for each edge defines its position on the confidence figure ( Y ) axis.
